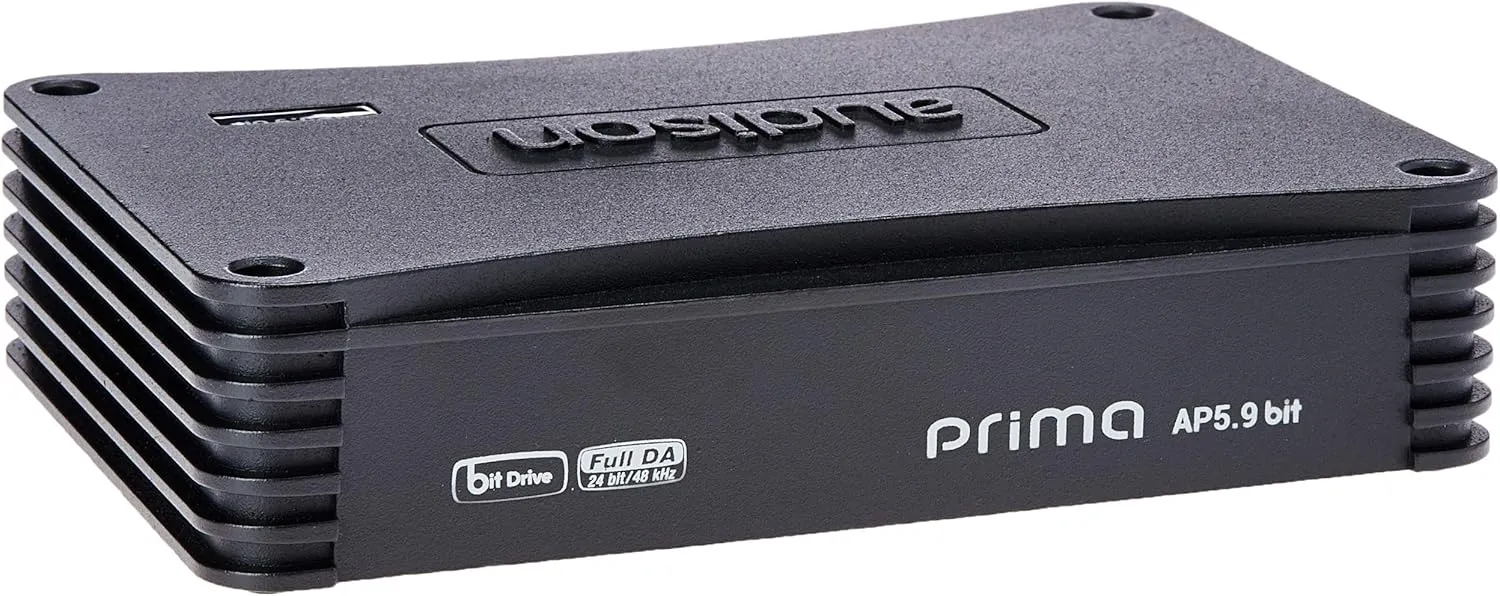

Technical Specifications
Power Supply
Voltage: 7.5~15 VDC
Idling current: 1.5A
Switched off: <1.4mA
Consumption @ 14.4 VDC 2ohm Max Musical Power (without CPL): 30A
Remote IN: 7 ~ 15 VDC (1mA)
Remote OUT: 11 ~ 15 VDC (200mA)
Fuse: 30A
ART (Automatic Remote Turn on/off): Speakers to input - selectable
AST (Automatic Signal Turn on/off): Pre-In to input - selectable
CPL (Continuous Power Limiting): Max continuous power - selectable

Amplifier Stage
Distortion - THD @ 1kHz, 4ohm, 90 Output Power(Ch1-4): 0.08
Distortion - THD @ 1kHz, 4ohm, 90 Output Power(Ch5): 0.1
Bandwidth (-3 dB 2V RMS, 4ohm): 10 ~ 22kHz / 10 ~ 500Hz SUB
S/N ratio @ A weighted, 1V, Max Power: 95dBA
Damping factor @ 1kHz, 2V RMS, 4ohm: 70
Input sensitivity: 2 ~ 5V RMS
Input impedance: 15kohm
Load Impedance (Min):
Ch: 1-2-3-4-5: 2ohm
Max Power: 530W
OUTPUT POWER (RMS) @ 12 ~ 14.4VDC, 1 THD:
5 Ch @ 4ohm: 20W x 2 50W x 2 150W x 1
5 Ch @ 2ohm: 40W x 2 90W x 2 270W x 1
OUTPUT POWER (RMS) @ 14.4 VDC, 10 THD:
5 Ch @ 4ohm: 25W x 2 60W x 2 190W x 1
5 Ch @ 2ohm: 50W x 2 115W x 2 350W x 1

CEA Specifications
Output power @ 4ohm, 1 THD N, 14.4 V: 20W x 2 50W x 2 150W x1
SN ratio (ref. 1W output): 80 dBA

Signal Connections
Input Stage:
Config 1: Hi / Lo level FL FR RL RR N.2 customizable
Config 2: Hi / Lo level FL FR RL RR Stereo Aux In (Selectable: DRC/select.)
Optical IN (max 96kHz / 24bit): S/P-DIF PCM 96kHZ/ 24bit max (Selectable: DRC/select.)

Digital Signal Processor
Crossover: Full / Hi Pass/ Lo Pass/ Band Pass
Crossover type and slope: Linkwitz @ 12/27 dB - Butterworth @ 6/12/18/24 dB
Crossover Frequency: 68steps @ 20 ~ 20kHz
Phase inversion: 0 / 180
Anolog Input Equalizer: Automatic De-Equalization
Output Equalizer: N.9 Parametrics Equalizers: 12 dB;10 pole; 20 ~ 20k Hz
Time Alignment Distance: 0 ~ 510 / 0 ~ 200.8
Time Alignment Delay: 0 ~ 15ms
Time Alignment Step: 0,08 ms; 2,8 / 1.1
Time Alignment Fine Set: 0,02 ms; 0,7 / 0.27
SYSTEM SET:
Preset (Drive Preset): Rotary switch for 7 installation Presets
Acoustic Preset: N.2 DSP Memory, DRC selectable

Control Connections
From / to personal computer: 1 x micro USB-B
To Audison Electronics: DRC controls
ASP: Automatic Speaker Presence (For Module)
Optical / AUX select: 12V control for Optical In / AUX enable
Master enable: 12V control for Master In enable

General Requirements
PC connections: Micro USB (1.1 / 2.0 / 3.0)
Software/PC requirements: Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
Graphic card min. resolution: 800 600
Ambient operating temperature range: 0 C to 55 C (32 F to 131 F)
